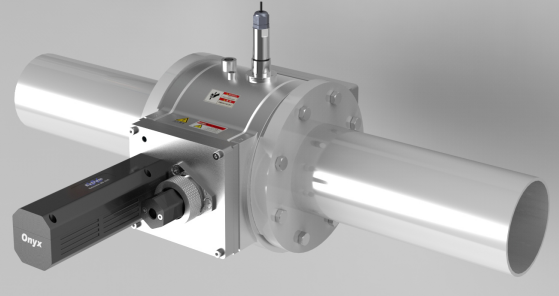

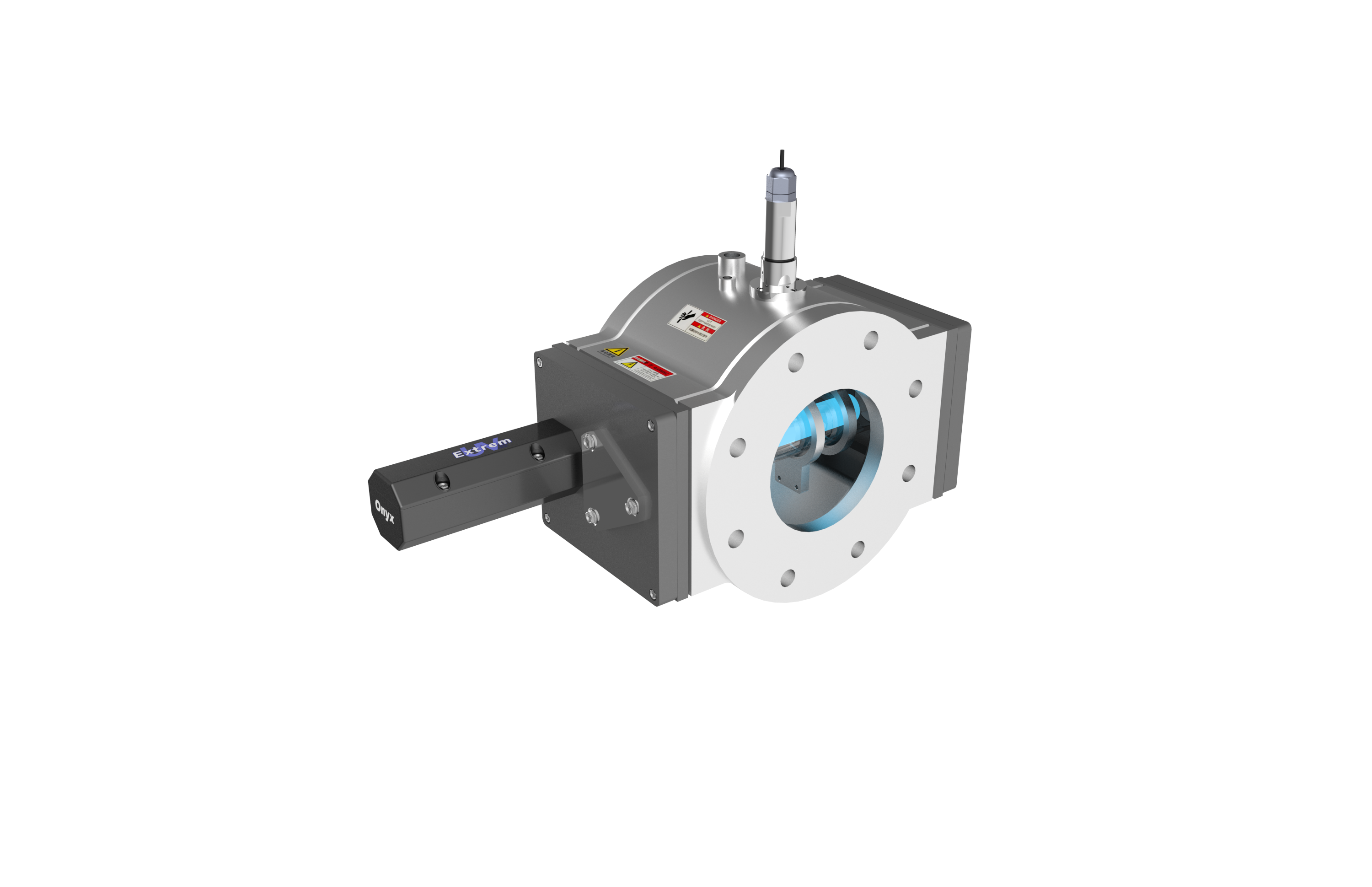

Name: Extrem Medium Pressure UV Disinfection System
Brand: ONYX
Author: ONYX Technical Team

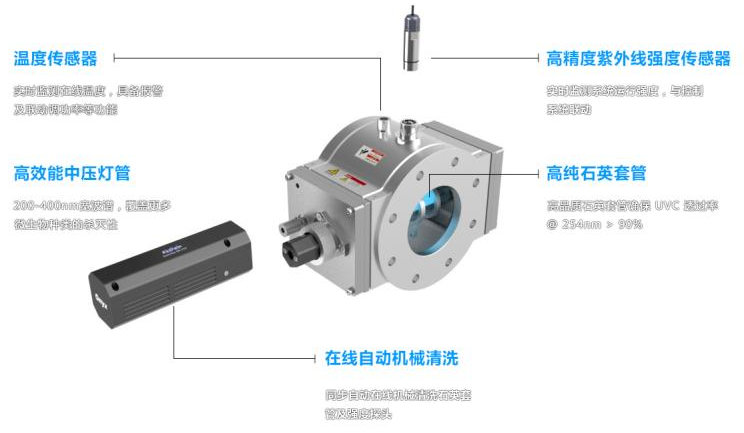

Advantages

	High disinfection efficiency: Medium-pressure UV lamps have a broad wavelength spectrum of 200-400nm, achieving a disinfection rate of 90% to 99.999%.

Easy Installation and Clean Production: Minimally occupies minimal space and provides a clean operating environment.

	Intelligent Response for Multiple Operating Conditions: Automatic power adjustment in 30%-100% increments, with timed on/off settings. Sustained and stable operation: Equipped with an online automatic cleaning system for the casing and intensity probe. Intelligent System: Displays UV dose, intensity, time, temperature, and alarms.

Parameter

Product Series	ONYX-Extrem-GY
Flow rate（@90%UVT，40mj/cm2）	40-300m3/h
Inlet and outlet sizes	DN80-DN200
Lamp type	Medium pressure lamps
Lamp life	9000h
power	0.8KW/1kw/1.5KW/2KW/2.5KW/3KW/4kw/6kw
Lamp power adjustment range	30-100%
Shell material	Stainless steel 316L
Cleaning drive system	Motor Drive
Automatic Cleaning	Online Automatic Mechanical Cleaning
UV intensity sensor	1 per device
Temperature sensor	1 per device
Installation location	Indoor
Control Cabinet Protection Level	IP54
Control System	Touch screen + PLC control
Power specifications	220V/50HZ
Head loss	＜400mm

Technical Specifications

Parameter	Specification
Model	Extrem Medium Pressure UV Disinfection System
Treatment Capacity	Customized, range 1 - 100,000 m3/day
UV Dose	>=40 mJ/cm2 (meets NSF/EPA standards)
Lamp Type	Low-pressure high-output / Medium-pressure (optional)
Effective Lamp Lifespan	5,000-8,000 hours
Reactor Material	316L Stainless Steel / 304 Stainless Steel
Operating Temperature	5 - 45 °C
IP Rating	IP68 (lamp module) / IP65 (control cabinet)
Cleaning Method	Automatic mechanical cleaning / Chemical cleaning (optional)
Control System	PLC automatic control, SCADA remote monitoring supported
Certification	CE, NSF/ANSI 55, GB/T 19837

Application Scenarios

Extrem Medium Pressure UV Disinfection System is widely used in the following applications:

Municipal Water & Wastewater: Drinking water plant disinfection, wastewater effluent treatment, water reuse disinfection
Industrial Water Treatment: Electronics ultrapure water, pharmaceutical water, food and beverage processing water
Marine & Shipping: Ballast water treatment, onboard sewage treatment
Aquaculture: Recirculating aquaculture system (RAS) water disinfection, hatchery water treatment
Swimming Pools & Landscapes: Pool water disinfection, ornamental water circulation
Advanced Oxidation: UV-AOP process for degrading refractory organics and removing micropollutants

Technical Principle

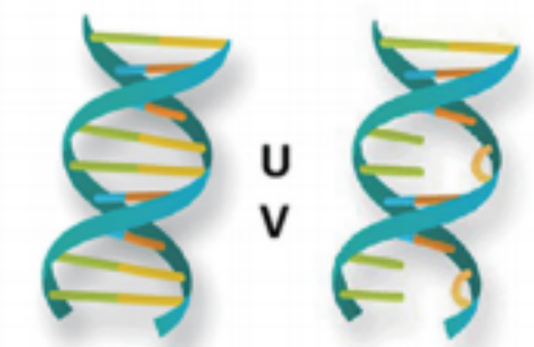

UV disinfection technology utilizes ultraviolet light (wavelength 254nm) to damage the DNA/RNA structure of microorganisms, rendering them unable to reproduce and effectively sterilizing the water. Compared with chemical disinfection, UV treatment requires no chemical additives, produces no disinfection by-products (DBPs), achieves high inactivation efficiency against bacteria, viruses, and spores, and requires only seconds of contact time. It is a safe, environmentally friendly physical disinfection method.

ONYX UV equipment features optimized reactor hydraulic design ensuring uniform UV dose distribution, paired with an automatic cleaning system to maintain lamp transmittance for long-term stable operation. The equipment supports online UV dose monitoring and real-time operational status feedback, and can be seamlessly integrated into existing SCADA systems.
